Product Details
＋

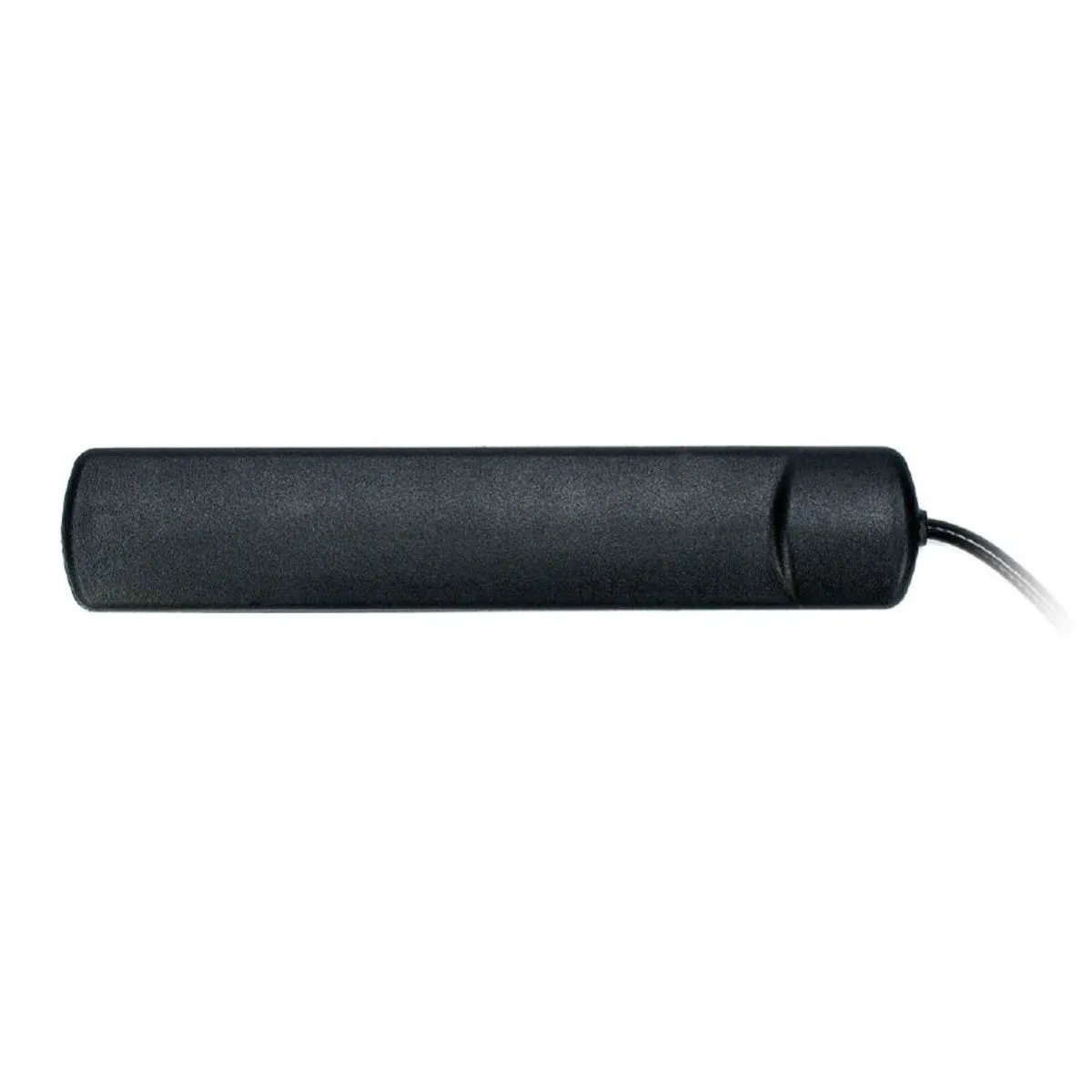

The T7 Series internal on-glass patch antennas are designed to cover all LTE bands (698-2700MHz).
These antennas are suited to applications where a disguised or compact solution is required and are suitable for car mobile phone kits, monitoring and M2M/telematics.
Features:
- Covers all LTE cellular bands including the new 700MHz (4GX/4G ) band
- Adhesive mount
- Ground plane independent
| Cable And Connector | 4m RG174, SMA male |
| Tuning | Supplied pre-tuned |
| Band | 698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Power w | 25 |
| Nominal Gain Dbi | 3.0 / 2.2 / 4.0 |
| VSWR | <2.5:1 |
| Tuned bandwidth | Full |
| Frequency MHz | 806 - 890, 890 - 960, 1710 - 1880, 1850 - 1990, 1910 - 2170 |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
| Height [mm] | 6.7 |
