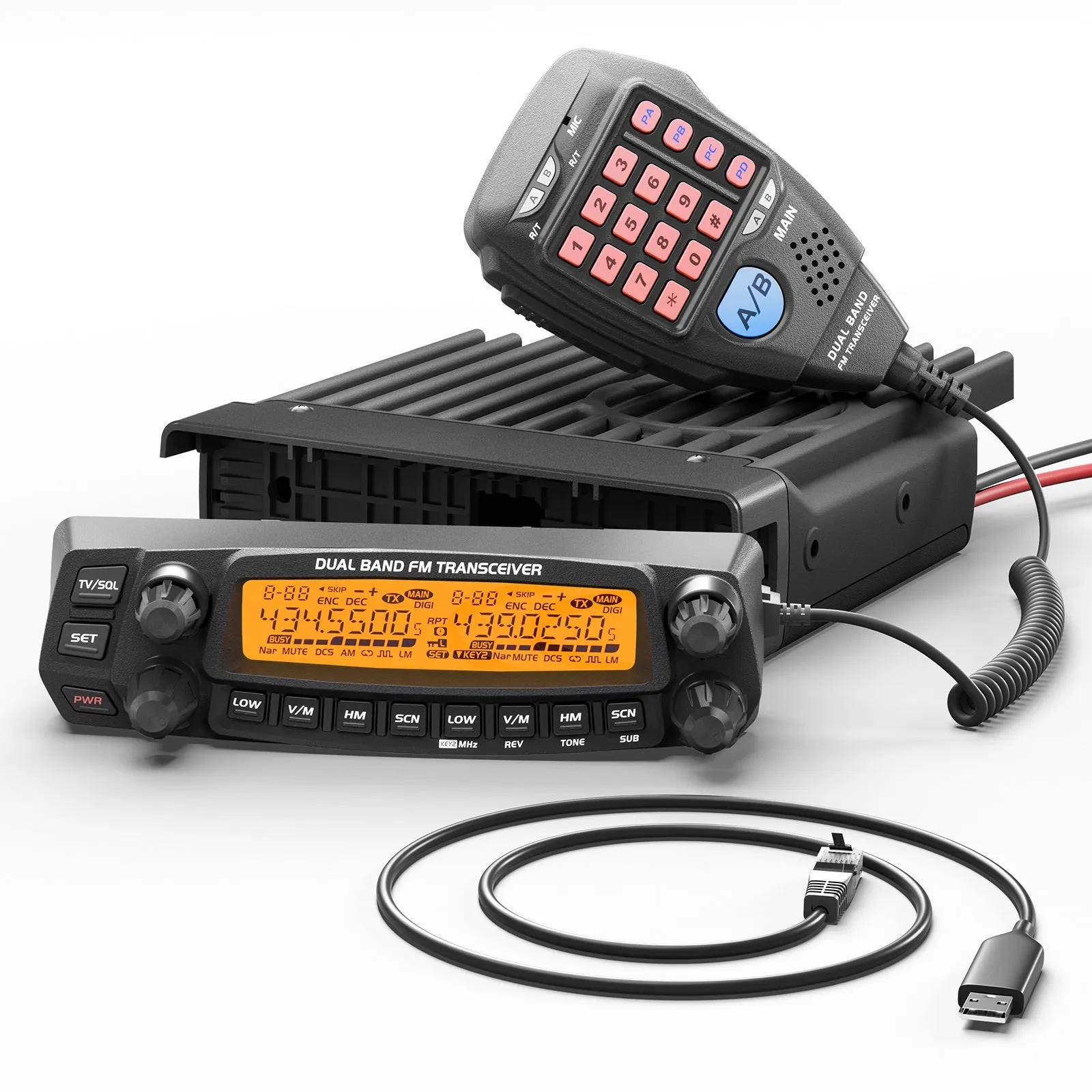

The Radioddity DB50 Mobile Transceiver is your reliable communication companion on the road. Its powerful 50W output, detachable display, and long-distance transmission capabilities guarantee flexible and clear communication. Unlike other dual band mobile radios, the DB50 boasts notable features like enabling receiving air band, 220MHz, 350MHz band, along with a 758-channel capacity, dual-band, dual display, dual watch, an efficient cooling system, and optional accessories for enhanced mobility. This compact yet powerful device ensures sustained high-quality communication for all your journeys.

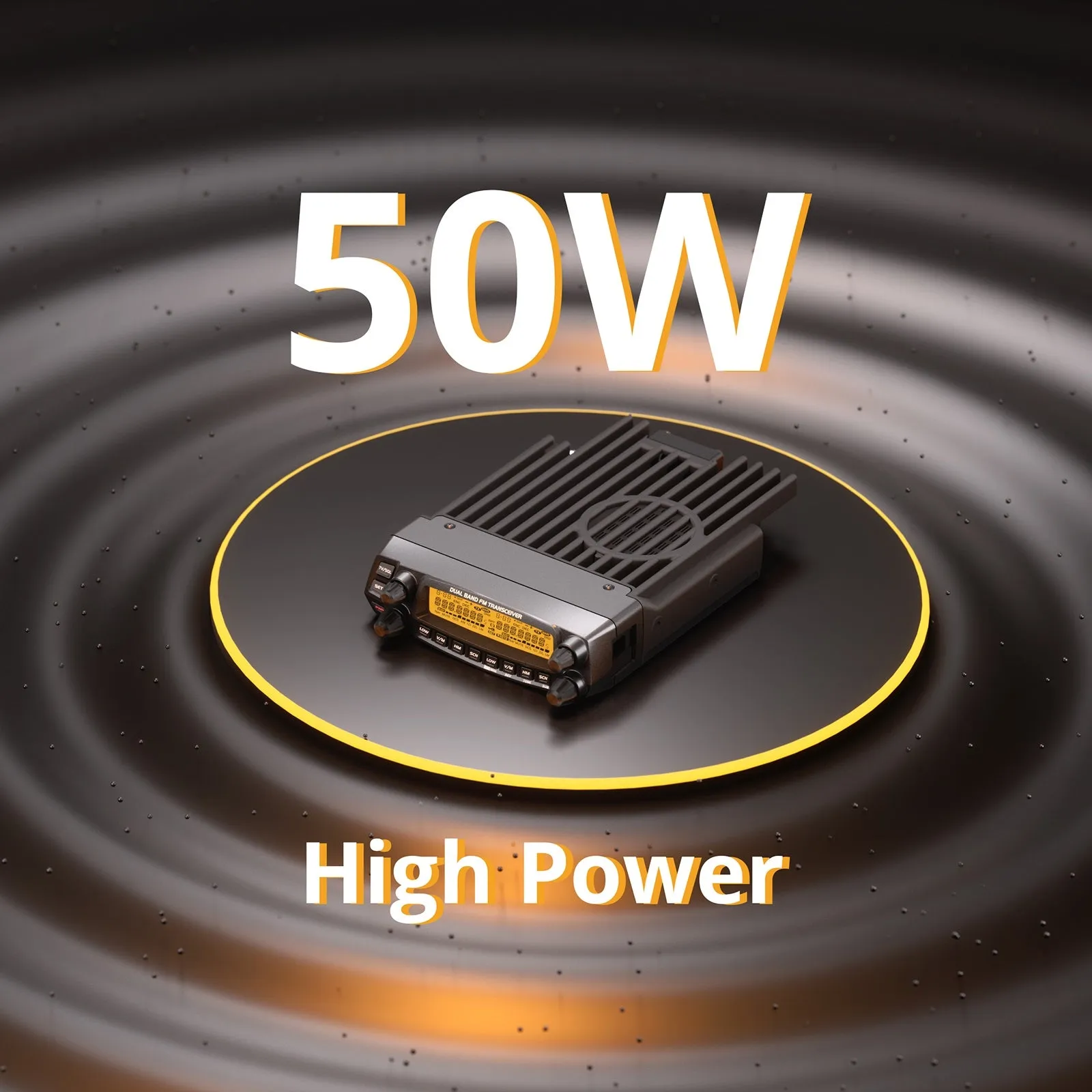

50W High Power
With the 50W output power, it ensures long-distance transmission for clear and reliable communication over vast areas. Particularly beneficial for professional users such as emergency services, logistics, and outdoor enthusiasts, who rely on effective long-range communication.

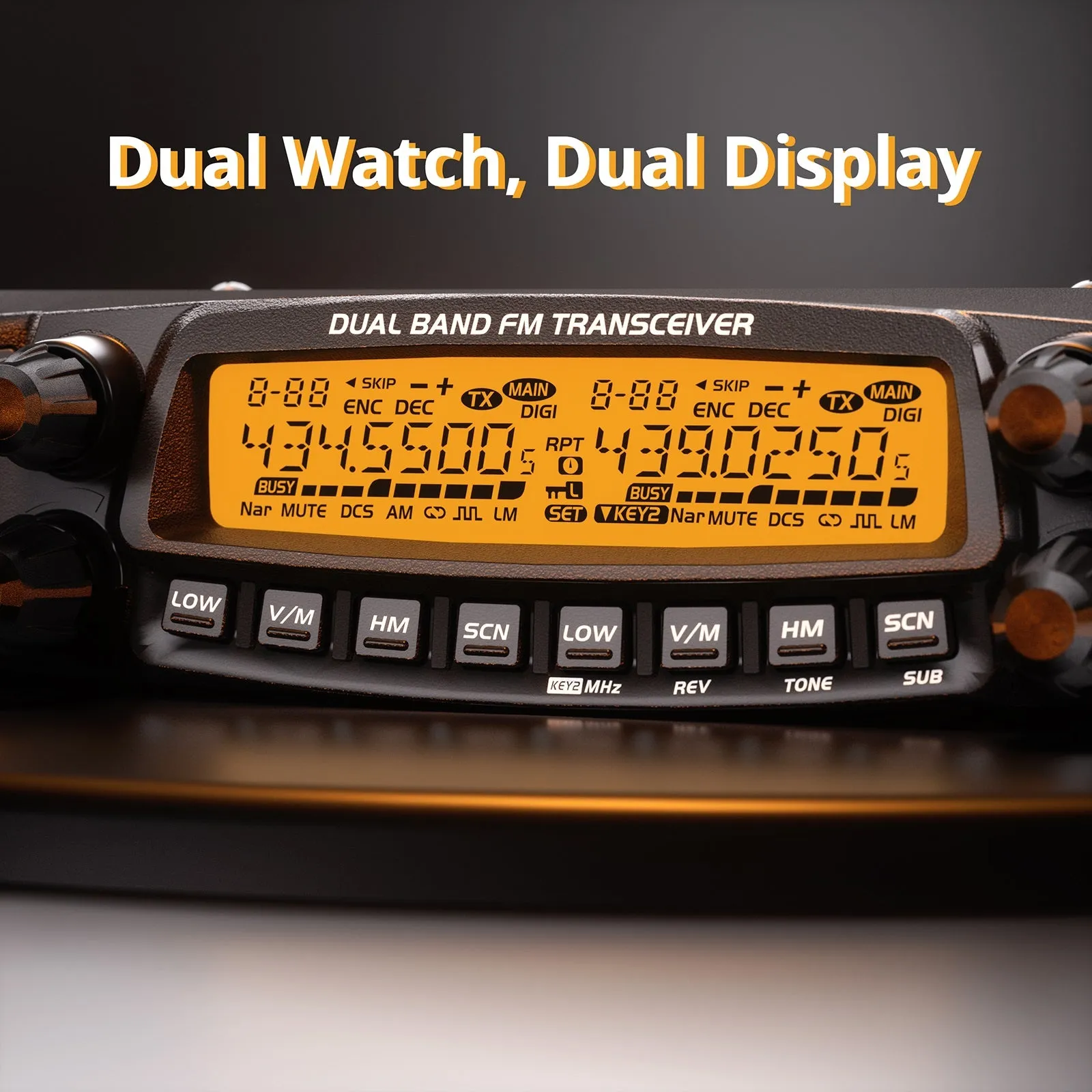

Dual-Band, Dual Display, Dual Watch
Offers the ability to simultaneously operate on dual frequencies, featuring two displays that allow the monitoring of two channels at once. This multi-functional capacity allows for seamless switching between frequencies, enhancing the device's versatility and user efficiency.

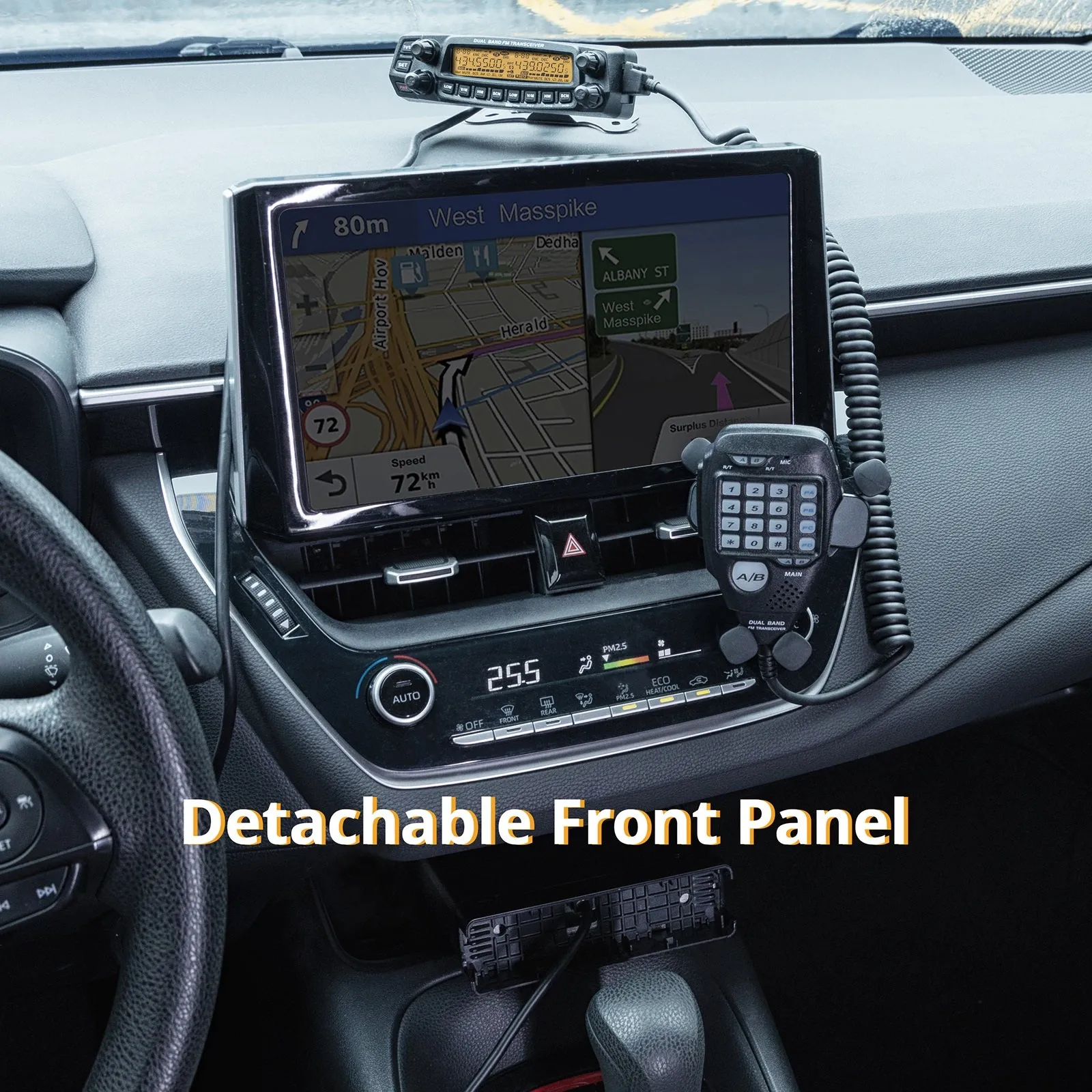

Detachable Front Panel
This feature enhances the device's usability in vehicles by enabling flexible positioning, ideal for drivers or users who require easy access without being constrained by a fixed installation point. It can be adjusted to fit various vehicle interiors and individual preferences, ensuring optimized visibility and control. We recommend taking it together with the DB50-K panel bracket.

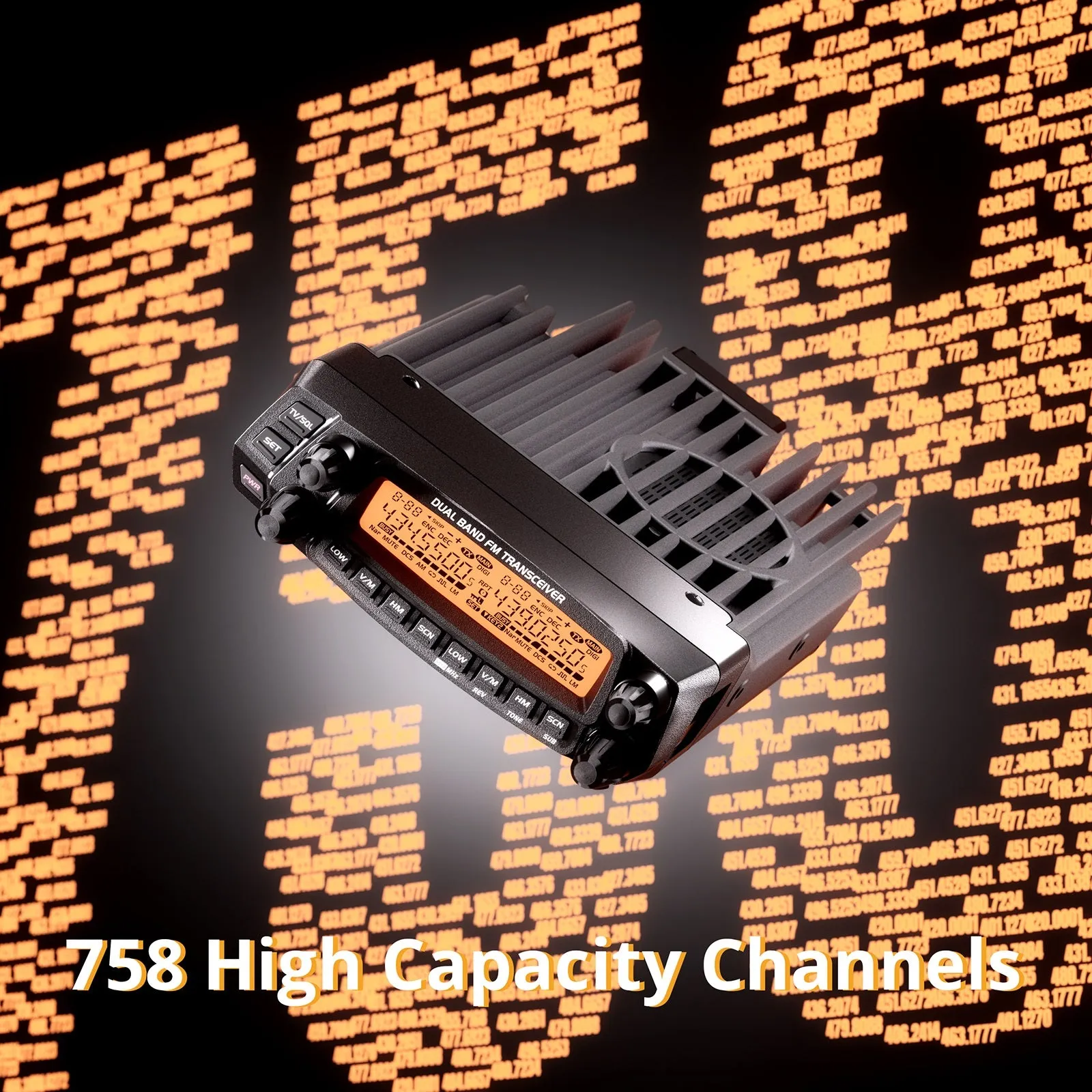

758 Channel Capacity
Equipped with an extensive channel capacity of 758, providing abundant options for frequency allocation and management. With the VFO and CH modes, effortlessly switch between finely tuned frequencies and a robust selection of preset channels, meeting diverse communication needs with ease.

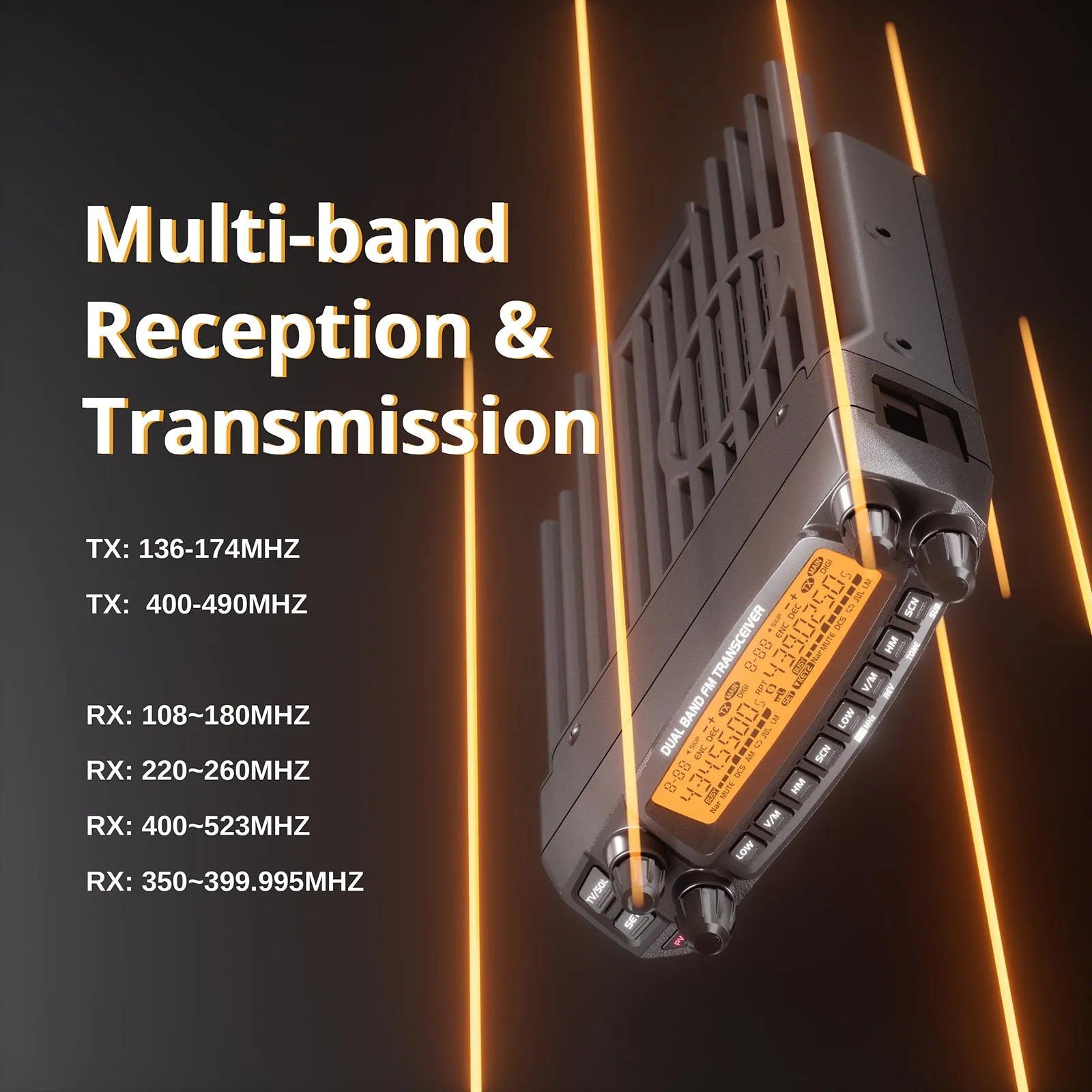

Multi-band reception
The DB50 supports a TX frequency range of 136-174MHz and 400-490MHz, complemented by an extensive RX range of 108-180MHz (AM/FM), 220-260MHz (FM), 400-523MHz (FM), and 350-399.995MHz (FM). This ensures wide-reaching communication across diverse frequency bands.

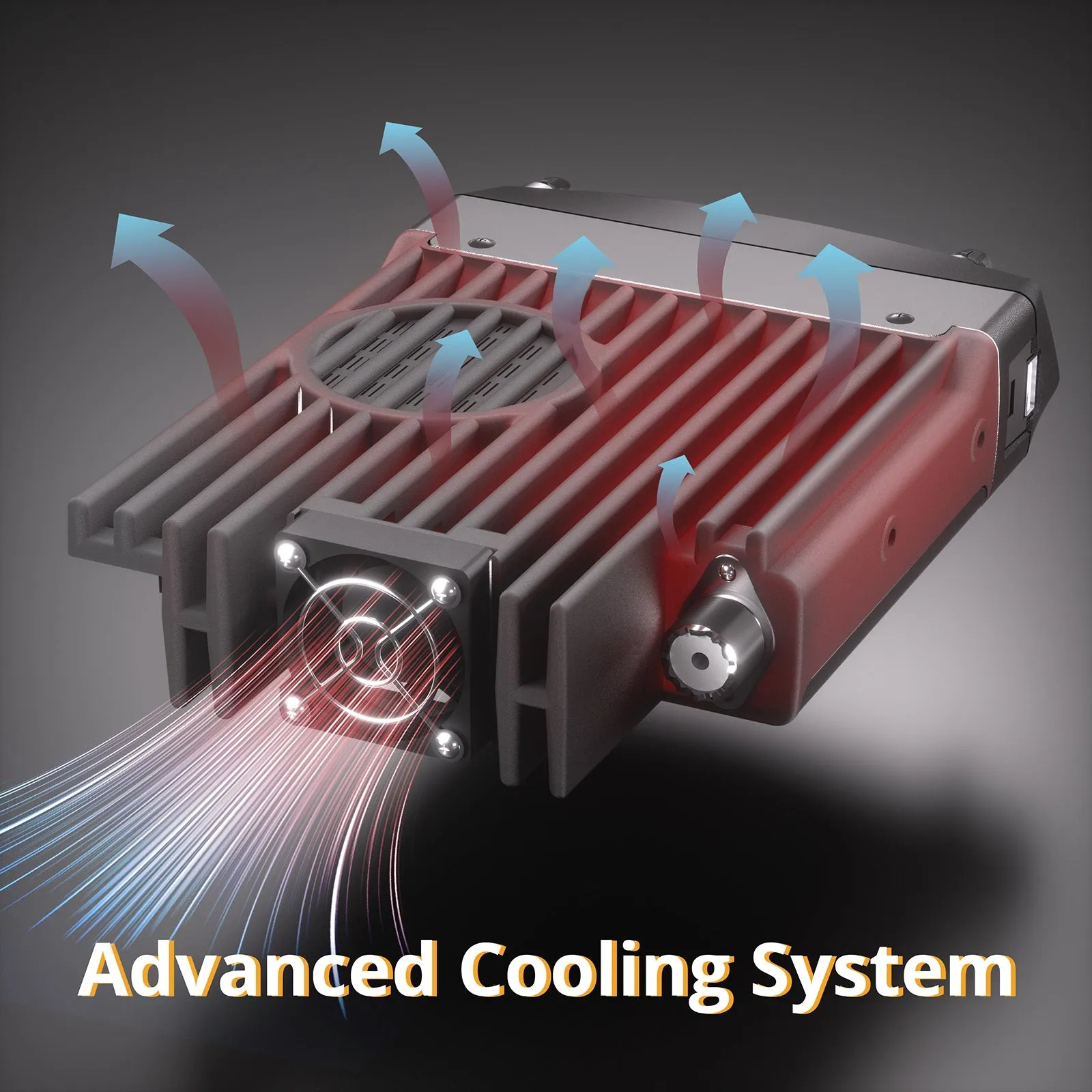

Advanced Cooling System
Features innovative cooling technology with a unique direct-flow heat sink and a cooling fan, which work together harmoniously to effectively regulate temperature, ensuring reliable long-term use.

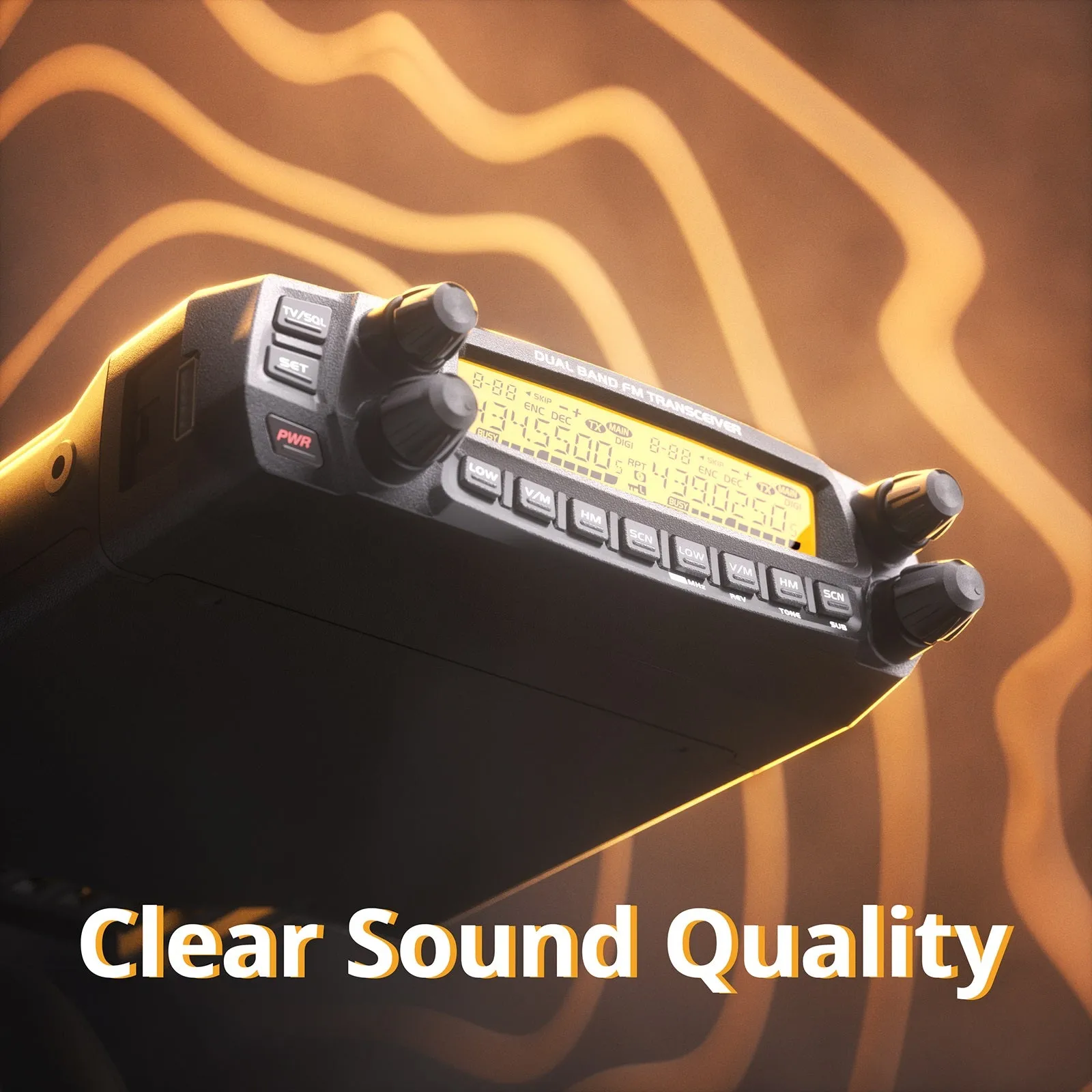

Clear Sound
It offers superior sound quality for clear, understandable communications, delivering excellent audio performance in varied conditions.

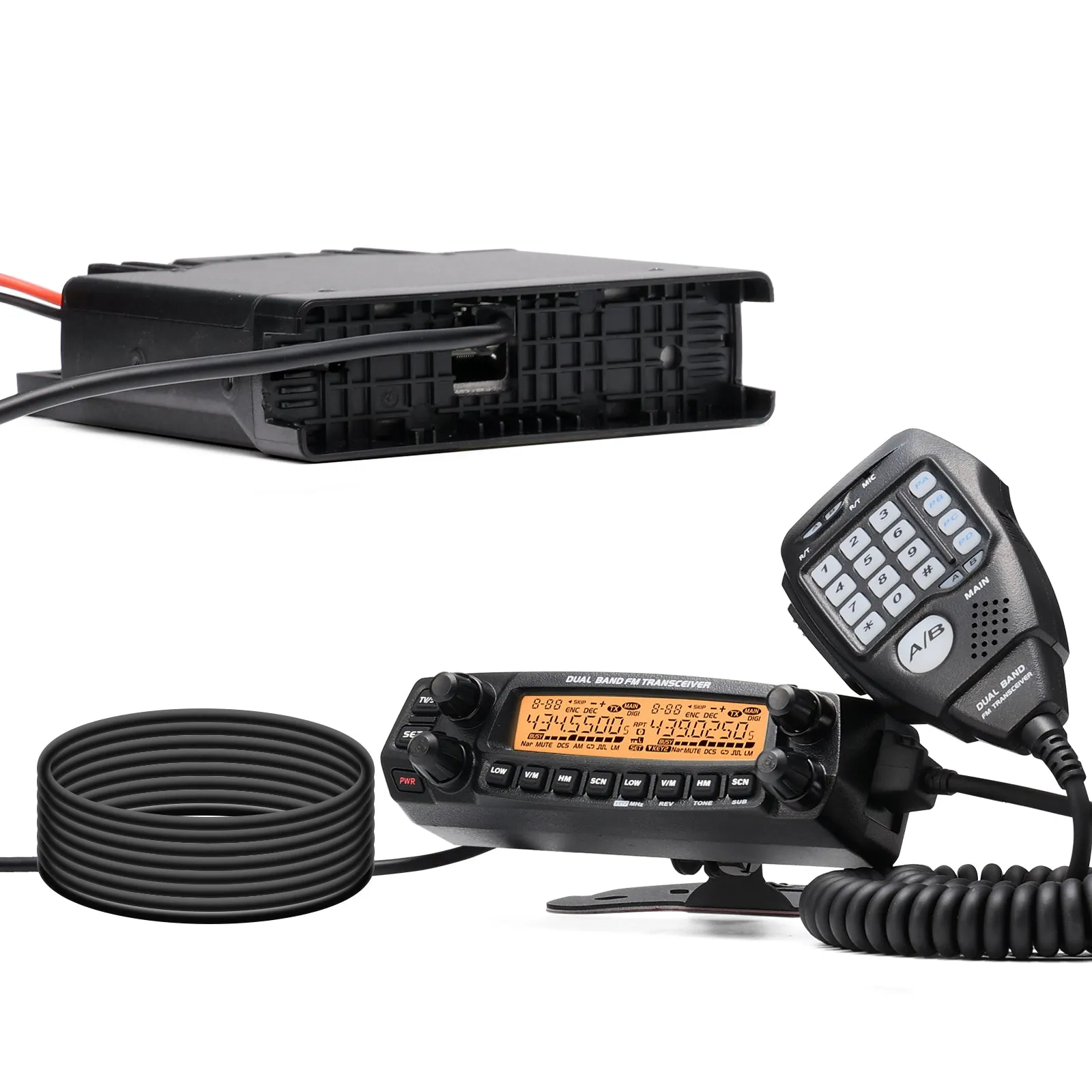

Recommended Accessory
(Not Included) Allows for the flexible adjustment with a 9.8ft connection line and mounting bracket, providing easy access and clear visibility at all times. Please note that you need to order the separately if you need this feature.
| General Specifications | |
| Frequency Range: | TX: 136-174Mhz / 400-490Mhz RX: 108-180MHz (AM/FM) / 220~260MHz (FM) 400~523MHz (FM) / 350~399.995MHz (FM) |
| Number of Channel: | 758 channels |
| Channel Spacing: | 25KHz (Wide band) / 20KHz (Middle band) / 12.5KHz (Narrow band) |
| Phase-locked Step: | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz |
| Operating Voltage: | 13.8V DC ±15% |
| Squelch: | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability: | ±2.5ppm |
| Operating Temperature: | -20℃ to 60℃ |
| Dimensions | 12.60" * 8.27" * 2.36" / 32.00 * 21.00 * 6.00cm |
| Weight: | 4.07lb / 1.85kg |
| Antenna Connector: | Connect a 50 Ω antenna |
| Chirp Programmable: | Choose "DB50" |
| FCC ID: | 2AN62-DB50 |
| Screen Size | 2.95" * 0.66"/ 7.5 * 1.7 cm |
| Transmitter | |
| Power Output: | 50W/25W/10W/5W(VHF) 40W/25W/10W/5W(UHF) |
| Modulation: | 16KΦF3E(Wide band) 11KΦF3E(Narrow band) |
| Adjacent Channel Power: | ≥70dB(Wide band) ≥60dB(Narrow band) |
| Hum & Noise: | ≥40dB(Wide band) ≥36dB(Narrow band) |
| Spurious Emission: | ≥70dB |
| Audio Response: | 1 to -3dB(0.3~3KHz)[Wide band] 1 to -3dB(0.3~2.55KHz)[Narrow band] |
| Audio Distortion: | ≤5% |
| Reception | |
| Sensitivity (12dB SINAD): | ≤0.25μV[Wide band] ≤0.35μV[Narrow band] |
| Adjacent Channel Selectivity: | ≥70dB[Wide band] ≥60dB[Narrow band] |
| Audio Response: | 1 to -3dB(0.3~3KHz)[Wide band] 1 to -3dB(0.3~2.55KHz)[Narrow band] |
| Hum & Noise: | ≥45dB[Wide band] ≥40dB[Narrow band] |
| Audio Distortion: | ≤5% |
| Audio Power Output: | ＞2W@10% |
Recommended Accessories (not included in the package)
1. Radioddity Front Panel Mounting Kit
2. Raddiddity Cup Holder Radio Mount
3. RadioddityAntenna Magnet Mount
4. RadioddityExternal Speaker
What's in the box?
1 x DB50 Radio
1 x Microphone (with DTMF Keyboard)
1 x PC005 Programming Cable
1 x Power Cable
1 x Mounting Bracket
1 x Microphone Hanger
DB50
DB25 Pro
QB25 Pro
Band
Band Type
Output Power
Frequency Range
Channel Capacity
Display Type
Monitor Type
Watch Type
Antenna Port
Front Panel
Chirp Programmable
Dimensions
Weight
40W/25W/10W/5W(UHF)@@TX: 136-174Mhz / 400-490Mhz
RX: 108-180MHz (AM/FM) / 220~260MHz (FM)
400~523MHz (FM) / 350~399.995MHz (FM)@@758@@Dual Display@@Dual Monitor@@Dual Watch@@PL-259@@Detachable@@✔@@12.60 x8.27 x2.36 in
32.00 x21.00 x6.00cm@@1.85kg/4.07lb
UHF: 400-480MHz@@200@@Dual Display@@Dual Monitor@@Dual Watch@@PL-259@@Fixed@@✔@@3.9x 1.7 x 5.0in
99×43×127 mm@@448g/15.8oz
VHF: 136-174MHz (220-260MHz)
UHF: 400-480MHz (350-390MHz)@@200@@Quad Display@@Quad Monitor@@Quad Watch@@PL-259@@Fixed@@✔@@3.9x 1.7 x 5.0in
99×43×127 mm@@448g/15.8oz
