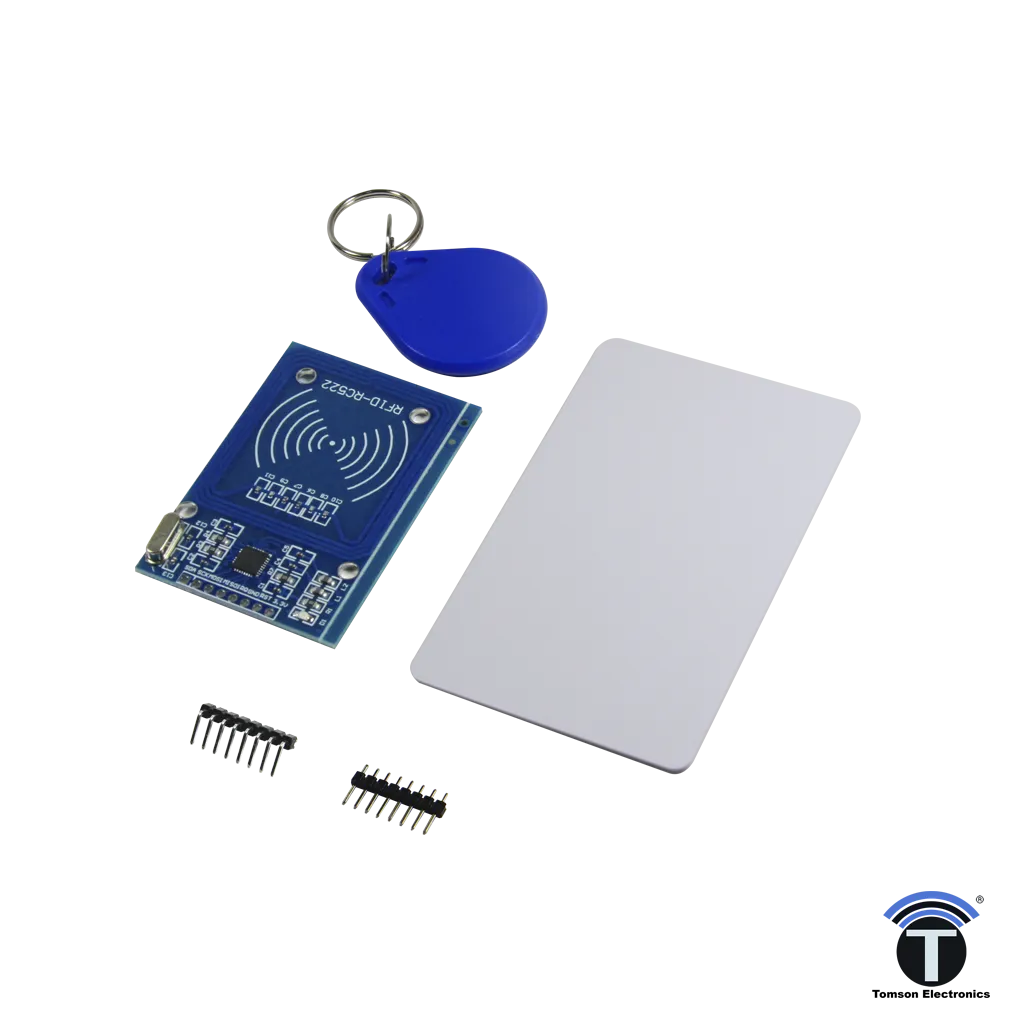

This is RFID Reader/Writer RC522 SPI S50 CARD AND KEYCHAIN which works on non-contact 13.56mhz communication, is designed by NXP as low power consumption, low cost and compact size read and write chip, is the best choice in the development of smart meters and portable hand-held devices.

It uses the advanced modulation system, fully integrated at 13.56MHz with all kinds of positive non-contact communication protocols. Support 14443A compatible answer signal. DSP deal with ISO14443A frames and error correction.

This module can fit directly in handheld devices for mass production. The module uses the 3.3V power supply and can communicate directly with any CPU board by connecting through the SPI protocol, which ensures reliable work, good reading distance.


FEATURES

Voltage:                       DC 3.3V (Do not use 5V supply)

Operating Current :     13-26mA

Idle Current :               10-13mA

Operating Frequency: 13.56MHz

Highly integrated analog circuitry to demodulate and decode responses

Supports ISO/IEC 14443 A/MIFARE

Typical operating distance in reading/Write mode up to 50 mm
